XB7EV08MP Schneider Electric
XB7EV08MP Schneider Electric
Opis

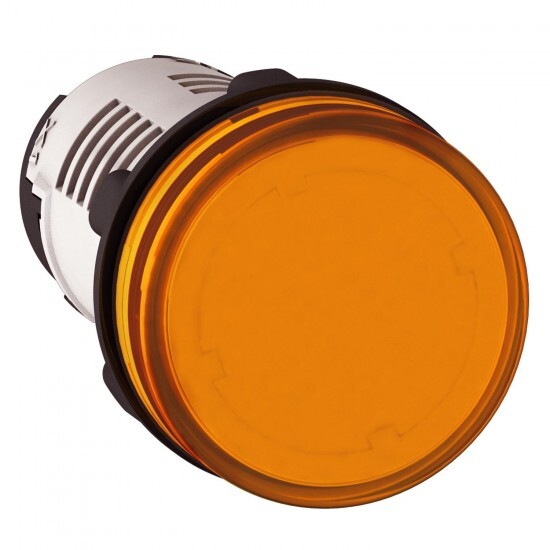

round pilot light Ø 22 - orange - integral LED - 230..240V-screw clamp terminals
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Harmony XB7 |
| Izdelek ali sestavni del | pilot light |
| Kratko ime naprave | XB7 |
| [Us] Nazivna napajalna npetost | 230...240 V AC 50/60 Hz |
| Izvor svetlobe | LED |
| mounting diameter | 22 mm |
| Oblika glave signalne enote | round |
| Pokrovček/upravljalnik ali barva leče | orange |
| Prodaja na nedeljivo količino | 10 |
| Grlo žarnice | integral LED |
| Predstavitev naprave | monolithic product |
| Komplementarno | |
| Višina | 29 mm |
| Teža izdelka | 0.02 kg |
| Povezave - terminali | screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| [Ui] Nazivna izolacijska trdnost | 250 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| Kompatibilnostna koda | XB7 |
| Širina | 29 mm |
| Globina | 54 mm |
| tightening torque | 0.8-1.2 N.m conforming to EN 60947-1 |
| [Us] rated supply voltage | 230...240 V |
| terminals description ISO n°1 | (X1-X2)PL |
| Poraba toka | 16...20 mA |
| Življenjska doba | 70000 h at rated voltage and 25 °C |
| Tip signalizacije | steady |
| Omejitve napajalne napetosti | 195-264 V AC |
| shape of screw head | cross compatible with JIS No 1 screwdriver cross compatible with Philips no 1 screwdriver cross compatible with pozidriv No 1 screwdriver slotted compatible with flat Ø 4 mm screwdriver slotted compatible with flat Ø 5.5 mm screwdriver |
| Način pritrjevanja | fixing nut beneath head: 2-2.4 N.m |
| fixing center | >= 30 x 40 mm (support panel) metal - thickness: 1-6 mm >= 30 x 40 mm (support panel) plastic - thickness: 2-6 mm |
| device mounting | fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-5-1 |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -25-70 °C |
| IP stopnja zaščite | IP20 (rear face) conforming to IEC 60529 IP65 (front face) conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| overvoltage category | class II conforming to IEC 60536 |
| Standardi | EN/IEC 60947-5-1 EN/IEC 60947-1 UL 508 JIS C8201-5-1 CSA C22.2 No 14 JIS C8201-1 |
| Odporno proti udarcu | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| NEMA degree of protection | NEMA 4 conforming to UL 50 E NEMA 12 conforming to UL 50 E |
| Zaščitna obdelava | TH |
| Elektromagnetna kompatibilnost | disturbing field emission class B conforming to EN 55011 |
