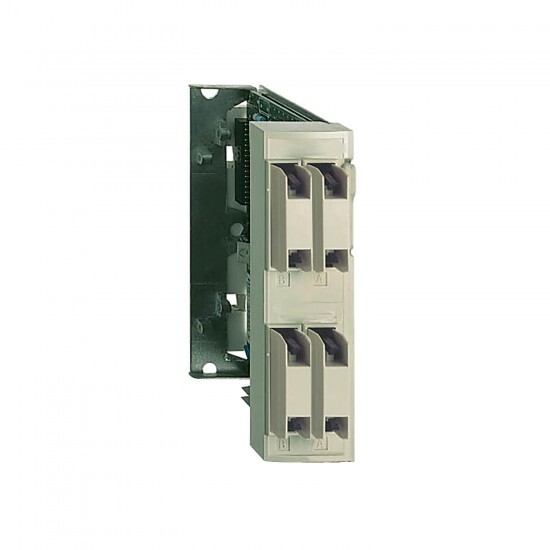

TSXDMZ64DTK Schneider

TSX Micro - 64 I/O solid state

Glavno
Serija izdelka	Modicon TSX Micro automation platform
Izdelek ali sestavni del	discrete solid state I/O base DC
discrete output voltage	24 V DC
discrete output number	32 1 HE-10 connector
discrete output logic	positive
discrete output current	0.1 mA
discrete input number	32 1 HE-10 connector
discrete input voltage	24 V DC, discrete input logic: positive
discrete input current	3.5 mA
discrete input type	current sink
Komplementarno
Teža izdelka	0.41 kg
Poraba toka	197 mA
switching frequency	< 0.5/LI² Hz
response time	0.1...7.5 ms from state 1 to state 0 input 0.1...7.5 ms from state 0 to state 1 input < 2.5 ms from state 1 to state 0 output < 2.5 ms from state 0 to state 1 output
input compatibility	2-wire/3-wire proximity sensor
maximum leakage current	0.1 mA at state 0
power dissipation in W	3.5 W by module output 0.15 W by channel output 5 W input
output overvoltage protection	by zener diode
output short-circuit protection	by current limiter and electronic circuit breaker
[Ures] residual voltage	1.5 V
reverse polarity protection	reverse diode on power supply
load impedance ohmic	220 Ohm
paralleling of outputs	yes : 3 maximum
current state 1 guaranteed	>= 2.5 mA
current state 0 guaranteed	<= 1.5 mA
input voltage limits	>= 11 V at state 1 < 5 V at state 0
input impedance	6.3 Ohm
output voltage limits	19...30 V
isolation voltage	1500 V for 1 s
output current limits	0.25 A
Okolje
Standardi	IEC 1131-2 Type 1
