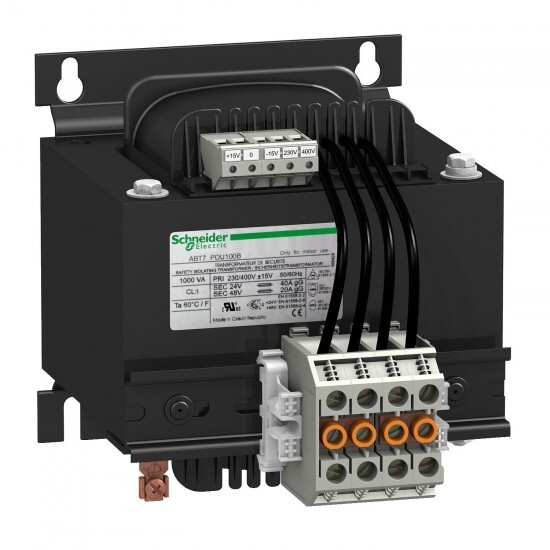

ABT7PDU160B Schneider Electric
ABT7PDU160B Schneider Electric
Opis
voltage transformer - 230..400 V - 2 x 24 V - 1.6 KVA
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Phaseo Universal |
| Izdelek ali sestavni del | safety and isolation transformer |
| ambient air temperature for operation | -20-60 °C |
| Druge vhodne napetosti | 230 V AC single phase, terminal(s): N-L1 400 V AC phase to phase, terminal(s): L1-L2 |
| protective cover | without |
| Druge izhodne napetosti | 24/48 V AC |
| Nazivna moč v VA | 1600 VA |
| secondary winding | double |
| Komplementarno | |
| Višina | 162 mm |
| Teža izdelka | 20 kg |
| Povezave - terminali | for input connection: screw type terminals, connection capacity: 5 x 4 mm² AWG 11 for input ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 11 for output connection: screw type terminals, connection capacity: 4 x 16 mm² AWG 4 |
| Kompatibilnostna koda | ABT7 |
| Širina | 174 mm |
| Globina | 167 mm |
| Označevanje | CE |
| Način pritrjevanja | by 4 screws diameter: 7 mm on vertical panel, operating position: horizontal by 4 screws diameter: 7 mm on vertical panel, operating position: vertical by 4 screws diameter: 7 mm on horizontal panel with derating to 90 % |
| Razred električne izolacije | class F |
| power dissipation in W | 102.1 W |
| network frequency limits | 47-63 Hz |
| output coupling | parallel grounding of secondary series by internal jumper |
| output sustained overvoltage | 0,028 (no load, hot state) |
| efficiency | 94 % |
| input voltage limits | 207...253 V 360...440 V |
| output protection type | against overload, protection technology: external against overvoltage, protection technology: external against short-circuits, protection technology: external |
| short-circuit voltage | 0,04 |
| voltage variation at nominal load | 0,027 at 230 V 0,0329 at 400 V |
| no load losses | 26.33 W |
| input voltage tolerance | +/- 15 V |
| maximum voltage drop at rated load | 3.71 % |
| operating altitude | 3000 m |
| Okolje | |
| IP stopnja zaščite | IP20 |
| Temperatura okoliškega zraka za skladiščenje | -40-80 °C |
| relative humidity | 0-95 % during operation |
| overvoltage category | class I conforming to VDE 0106-1 |
| Certifikati izdelkov | UR EAC |
| Standardi | UL 506 |
| environmental characteristic | EMC conforming to EN 62041 safety conforming to EN 61558-1 safety conforming to EN 61558-2-6 |
| dielectric strength | 3200 V between input and ground 3200 V between output and ground 5100 V between input and output |
