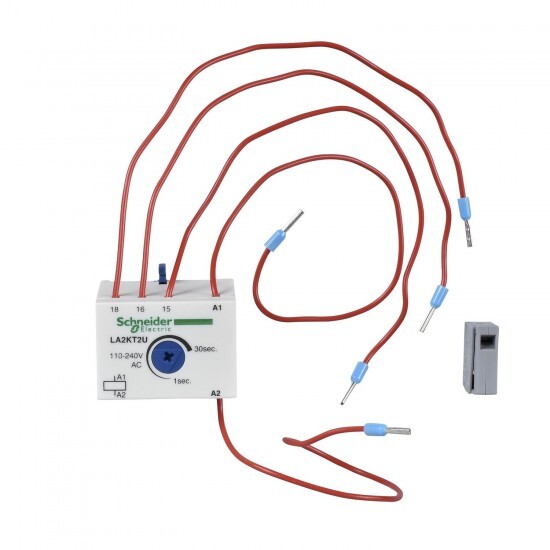

LA2KT2U Schneider Electric
LA2KT2U Schneider Electric
Opis
TeSys K -Time delay auxiliary contact block - 1 C/O - 110...240 V - 1…30s
Tehnične lastnosti
| Glavno | |
| Serija izdelka | TeSys K control relay TeSys K |
| Izdelek ali sestavni del | time delay auxiliary contact block |
| Skupina izdelkov | TeSys |
| Kratko ime naprave | LA1 |
| connections - terminals | slip-on terminals |
| pole contact composition | 1 C/O |
| Shielding continuity terminal | without |
| Komplementarno | |
| Višina | 27 mm |
| Teža izdelka | 0.04 kg |
| Kompatibilnostna koda | LA1 |
| Širina | 38 mm |
| Globina | 38 mm |
| [Ue] rated operational voltage | 240 V AC for signalling circuit 240 V DC for signalling circuit 110...240 V AC for supply circuit |
| [Ith] conventional free air thermal current | 2 A |
| mounting location | front |
| time delay range | 1...30 s |
| reset time | 1.5 ms |
| rated operational voltage limits | 0.85...1.1 Uc |
| timer type | on delay |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -10-60 °C |
| IP stopnja zaščite | IP2x conforming to VDE 0106 |
| Certifikati izdelkov | UL CSA |
| Standardi | VDE 0660 BS 5424 NF C 63-110 IEC 60947 |
| Zaščitna obdelava | TC conforming to IEC 60068 |
| environmental characteristic | normal environment |
