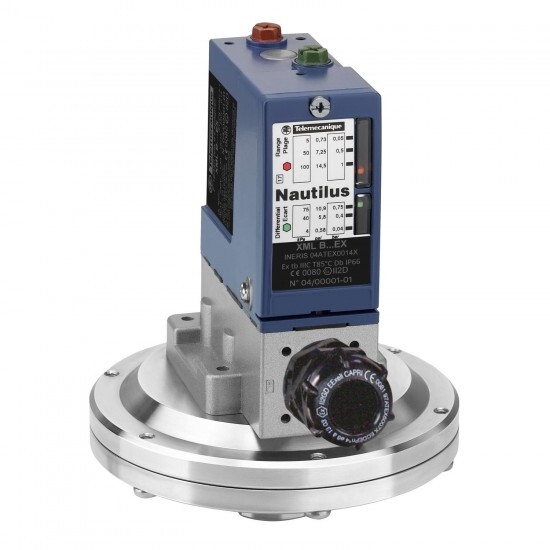

XMLBL35R2S12EX Schneider
XMLBL35R2S12EX Schneider
Opis
pressure switch XMLB - 350 mbar - adjustable scale 2 thresholds - 1 C/O
Tehnične lastnosti
| Glavno | |
| Serija izdelka | OsiSense ATEX D |
| product specific application | ATEX D |
| pressure sensor type | electromechanical pressure sensor |
| pressure actuator | diaphragm |
| pressure switch type of operation | regulation between 2 thresholds |
| materials in contact with fluid | FPM, FKM steel stainless steel |
| local display | with |
| fluid connection type | G 1/4 (female) conforming to ISO 228 |
| pressure sensor size | 0.35 bar |
| controlled fluid | air (0-70 °C) hydraulic oil (0-70 °C) water (0-70 °C) |
| scale type | adjustable differential |
| electrical circuit type | control circuit |
| enclosure material | zinc alloy |
| maximum permissible accidental pressure | 2.25 bar |
| destruction pressure | 4.5 bar |
| pressure sensor name | XMLB |
| adjustable range of switching point on falling pressure | 0.003-0.3 bar |
| adjustable range of switching point on rising pressure | 0.045-0.35 bar |
| possible differential maximum at high setting | 0.3 bar |
| Komplementarno | |
| Višina | 162 mm |
| mechanical durability | 4000000 cycles |
| Širina | 110 mm |
| Globina | 110 mm |
| terminals description ISO n°1 | (13-14-11-12)OF |
| contacts material | silver contacts |
| repeat accuracy | 2 % |
| terminal block type | 4 terminals |
| maximum permissible pressure - per cycle | 1.25 bar |
| setting | external |
| cable entry number | 1 tapped entry for M20 x 1.5 cable gland (included) |
| auxiliary contacts operation | snap action |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -20-60 °C |
| Certifikati izdelkov | INERIS 04ATEX0058 IEC-Ex INE 17.0019 |
| Standardi | EN/IEC 60079-0 EN/IEC 60079-31 |
| Zaščitna obdelava | TC |
| operating position | any position |
| directives | 2014/34/EU - ATEX directive |
| marking | II2 D-Ex tb IIIC T85°C Db IP66 |
