XB4BVM1EX Schneider Electric
XB4BVM1EX Schneider Electric
Opis

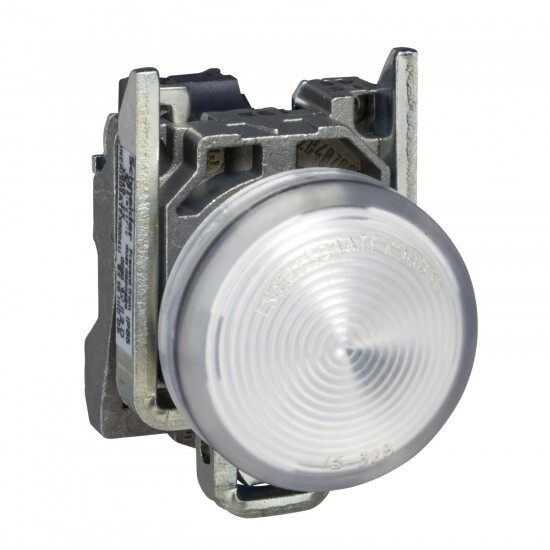

round pilot light Ø 22 - IP65 - white - integral LED - 240 V - lugs - ATEX
Tehnične lastnosti
| Glavno | |
| Serija izdelka | Harmony XB4 |
| Izdelek ali sestavni del | complete pilot light |
| Kratko ime naprave | XB4 |
| Dodatne informacije za operaterja | with plain lens |
| mounting diameter | 22 mm |
| fixing collar material | zamak |
| head type | standard |
| Prodaja na nedeljivo količino | 1 |
| bezel material | chromium plated metal |
| dust zone | zone 21 - 22 |
| Komplementarno | |
| Povezave - terminali | screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| [Ui] Nazivna izolacijska trdnost | 250 V (pollution degree 3) conforming to EN 60947-1 |
| Kompatibilnostna koda | XB4 |
| [Us] rated supply voltage | 230...240 V AC 50/60 Hz |
| Poraba toka | 14 mA |
| Odpornost proti visokotlačnemu čistilniku | 7000000 Pa at 55 °C, distance : 0.1 m |
| Življenjska doba | 100000 h at rated voltage and 25 °C |
| Prenapetostna vzdržljivost | 1 kV conforming to IEC 61000-4-5 |
| Tip signalizacije | steady |
| Omejitve napajalne napetosti | 195-264 V AC |
| customizable | no |
| light source | integral LED |
| shape of signaling unit head | round |
| cap/operator or lens colour | white |
| Označevanje | Ex tb IIIC |
| embedding depth | 43 mm |
| fixing center | >= 30 x 40 mm (support panel) |
| device mounting | fixing hole - diameter: 22.5 mm 22.3 +0.4/0 |
| light source colour | white |
| Okolje | |
| Temperatura okoliškega zraka za delovanje | -20-60 °C |
| IP stopnja zaščite | IP65 conforming to IEC 60529 |
| Temperatura okoliškega zraka za skladiščenje | -40-70 °C |
| overvoltage category | I conforming to IEC 60536 |
| IK stopnja zaščite | IK05 conforming to IEC 50102 |
| Certifikati izdelkov | INERIS 04ATEX9004U |
| Odpornost na elektromagnetna polja | 10 V/m conforming to IEC 61000-4-3 |
| Standardi | EN 60079-0:2009 EN 60079-31:2009 EN 61000-6-2 IEC 60079-0:2007 IEC 60079-31:2008 |
| Odporno proti udarcu | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Odpornost proti vibracijam | 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6 |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| Odpornost na elektrostatično razelektritev | 6 kV on contact (on metal parts) conforming to IEC 61000-4-2 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Zaščitna obdelava | TH |
| Odpornost proti hitrim prehodnim pojavom | 2 kV conforming to IEC 61000-4-4 |
| Elektromagnetne emisije | class B conforming to IEC 55011 |
| directives | 94/9/EC - ATEX directive |
